Voltus E Loader
Commercial

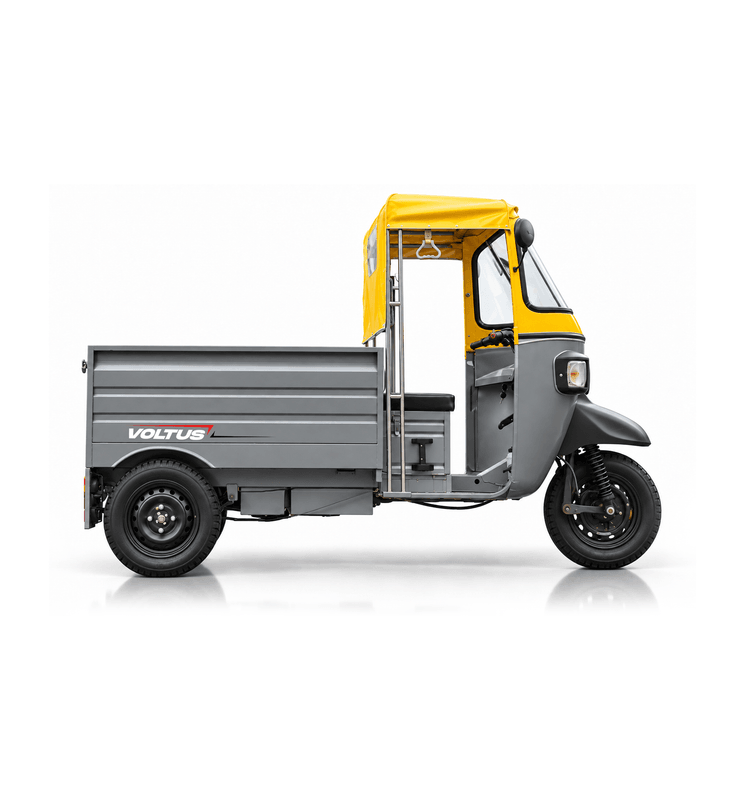

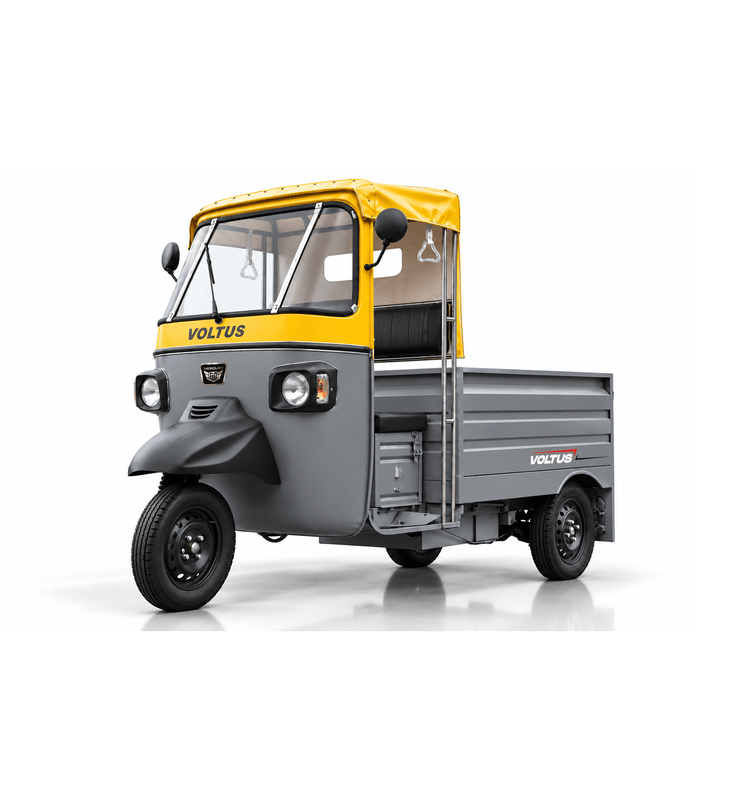

Mercury Voltus E Loader
Compact, efficient, and ready for the job—delivering performance and reliability with a swift 160+ km range at an unbeatable price.
|
Range 160+ KM |
Top Speed 55-60 kmph |
Battery 72V 200Ah |
|
Charging Time 4 Hr |
Payload 150 Kg |
GPS Yes |
Color Option:
Technical Specifications
| Max Power | 7.78KW |
| Fuel Type | BATTERY OPERATED VEHICLE |
| Max Torque | |
| Gradeability (%) | |
| Turning Radius (mm) | |
| Turning Radius (mm) | |
| Range | 110-120 km/charge |
| Battery Capacity | 72V, 43AH |
| Type of Motor | BLDC Hub Motor |
|
Type |
Li-ion - LFP |
|
Battery Capacity(kWh) |
8.9 kWh |
|
IP67 Packaging |
Yes |
| Chargin Time | 4 hr (0 to 100 %) |
| Overall Length (mm) | 2750 mm |
| Overall Width (mm) | 995 mm |
| Overall Height (mm) | 1730 mm |
| Ground Clearance (mm) | 150 mm |
| Wheelbase (mm) | 845 mm |
| Brakes | Hydraulic drum Brake |
| Front Suspension | Helical spring |
| Rear Suspension | Spring leaf suspention |
| ABS | NA |
| Parking Brakes | Yes |
| Transmission | Electric |
| Steering | Handle bar |
| A/C | Coiled Spring |
| Cruise Control | |
| Navigation System | NA |
| Telematics | NA |
| Tiltable Steering | NA |
| Arm-rest | NA |
| Seat Type | |
| Driver Information Display | NA |
| Adjustable Driver Seat | NA |
| Seating Capacity | Loader |
| Tubeless Tyres | NA |
| Seat Belts | NA |
| Brakes | Hydraulic Drum Brake |
| Front Suspension | Helical spring |
| Rear Suspension | Spring leaf suspention |
| ABS | NA |
| Parking Brakes | Yes |
| Number of Tyre | 3 |
| Rear Tyre | 4.5-10 8PR |
| Front Tyre | 4.5-10 8PR |
| Brakes | Hydraulic Drum Brake |
| Front Suspension | Helical spring |
| Rear Suspension | Spring leaf suspention |
| ABS | NA |
| Parking Brakes | Yes |
| Chassis | sheet metal |
| Battery(Volts) | 51.2V |
Download
Here you can find all relevant downloads for your Mercury EV
Key Features of the Voltus E Loader
